Simple, quick diesel injector diagnostics

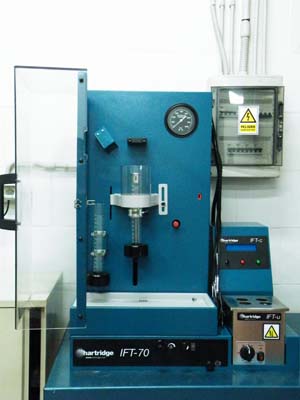

Available from Delphi, the Hartridge IFT-70 has been designed to provide garages and workshops with the ability to perform a simple and quick diesel injector diagnostic. It can be used as part of an initial vehicle diagnostic or as part of a full injector test, diagnosis and repair program when used in conjunction with Hartridge AVM or CRi-PC products. Providing a cost-effective entry point into Common Rail, the IFT-70 features a spray chamber for spray pattern observation, injection and back-leak graduates and a simple injector fixture for different injector sizes, as well as change between spray pattern and measurement modes. This modular test unit can also be upgraded to extend its capability to traditional mechanical injector and electronic unit injector nozzles.

The Delphi Difference

• Simple, cost-effective testing of all makes of Common Rail injectors up to 700 bar
• Provides a low cost entry into the Common Rail aftermarket
• IFT ultrasonic tank and nozzle opening pressure display available as optional extras
